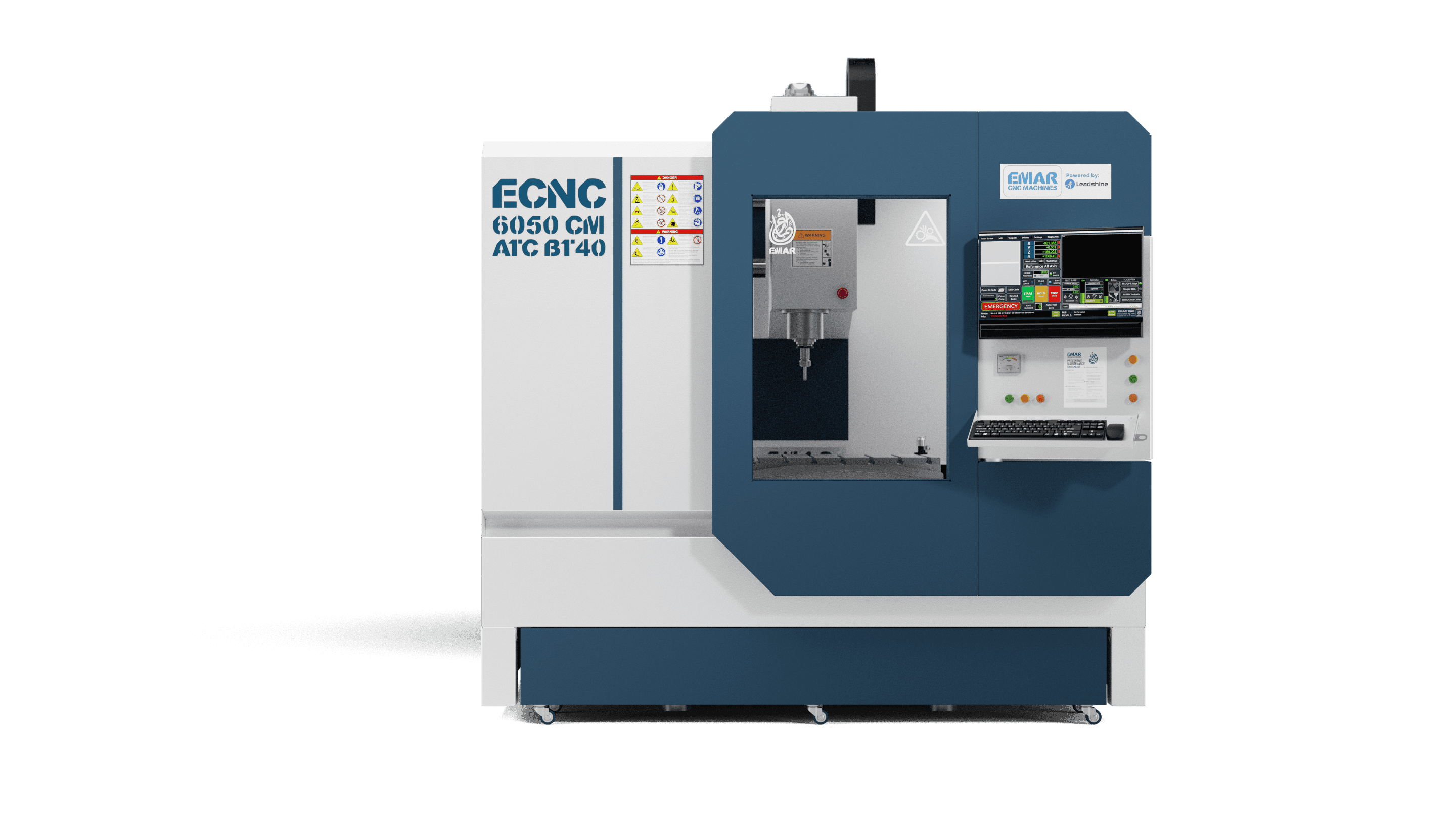

ECNC6050CMBT40
Bigger, Faster, Built for Continuous Production
The ECNC 6050 CM BT40 is designed for manufacturers who need higher productivity, greater machining flexibility, and reliable performance across demanding production environments Equipped with a BT40 spindle, automatic tool changer, servo motors, and a reinforced machine structure, it delivers the speed, rigidity, and accuracy required for continuous metal machining
Key Features & Benefits
Mach-3 Control
Interactive, user-friendly control system.
Cast Iron Chassis
Optimum rigidity with minimum noise and vibrations.
7.5 kW BT40 Spindle
7.5 kW at 8,500 RPM — powerful hard-metal cutting.
Vacuum Table
Enhanced workpiece holding for consistent results.
Touch Screen Interface
User-friendly intuitive operation.
Servo Motor Upgrade
Optional performance enhancement for demanding applications.
Technical Specifications
Full specifications for the ECNC 6050 CM BT40. Contact our team for custom configurations or application-specific requirements.
Download PDFCompatible Materials
Applications
- Plastic injection mold dies
- Sheet metal mold dies
- Blow mold dies
- Footwear mold dies
- Machine parts
- Precision drilling
| Dimensions (W×D×H) | 2200×1800×2300 mm |
| Table Size | 680×480 mm |
| Axis Travel (X,Y,Z) | 600×500×500 mm |
| Number of Axes | 3–5 |
| Spindle Power/Speed | 7.5 kW / 8,500 rpm |
| Max Tool Diameter | 40 mm |
| Spindle-to-Table Distance | 150–650 mm |
| Table Type/Max Load | T-Slot bed / 400 kg |
| Motors & Drivers | Closed-loop hybrid stepper servo |
| Guides & Bearings | HIWIN/TPI |
Get a Quote for the ECNC 6050 CM BT40
Contact our sales team for the best price and unit availability. We respond within hours.
