ECNC5030M
Egypt’s First Economical CNC Milling Machine

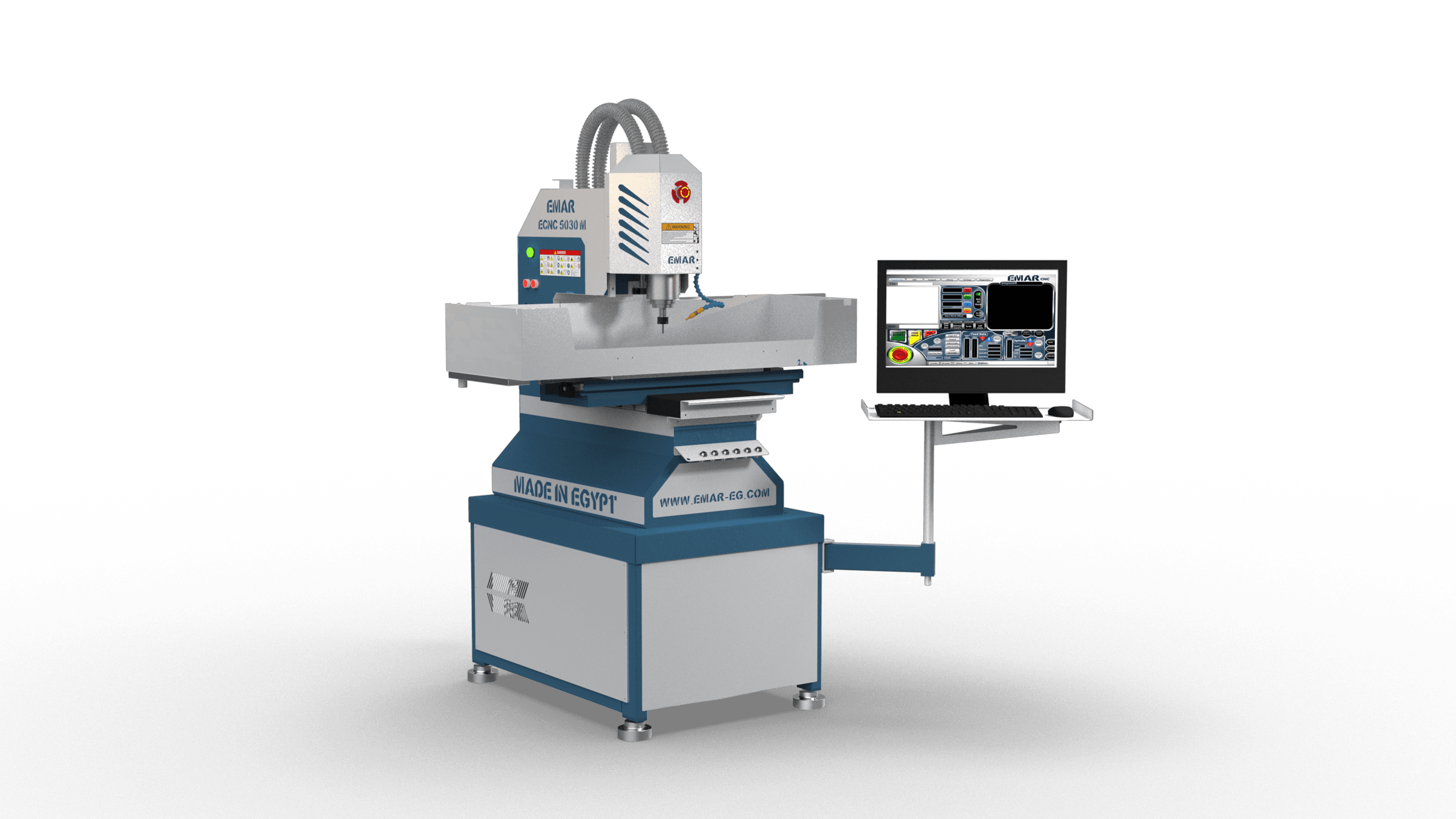

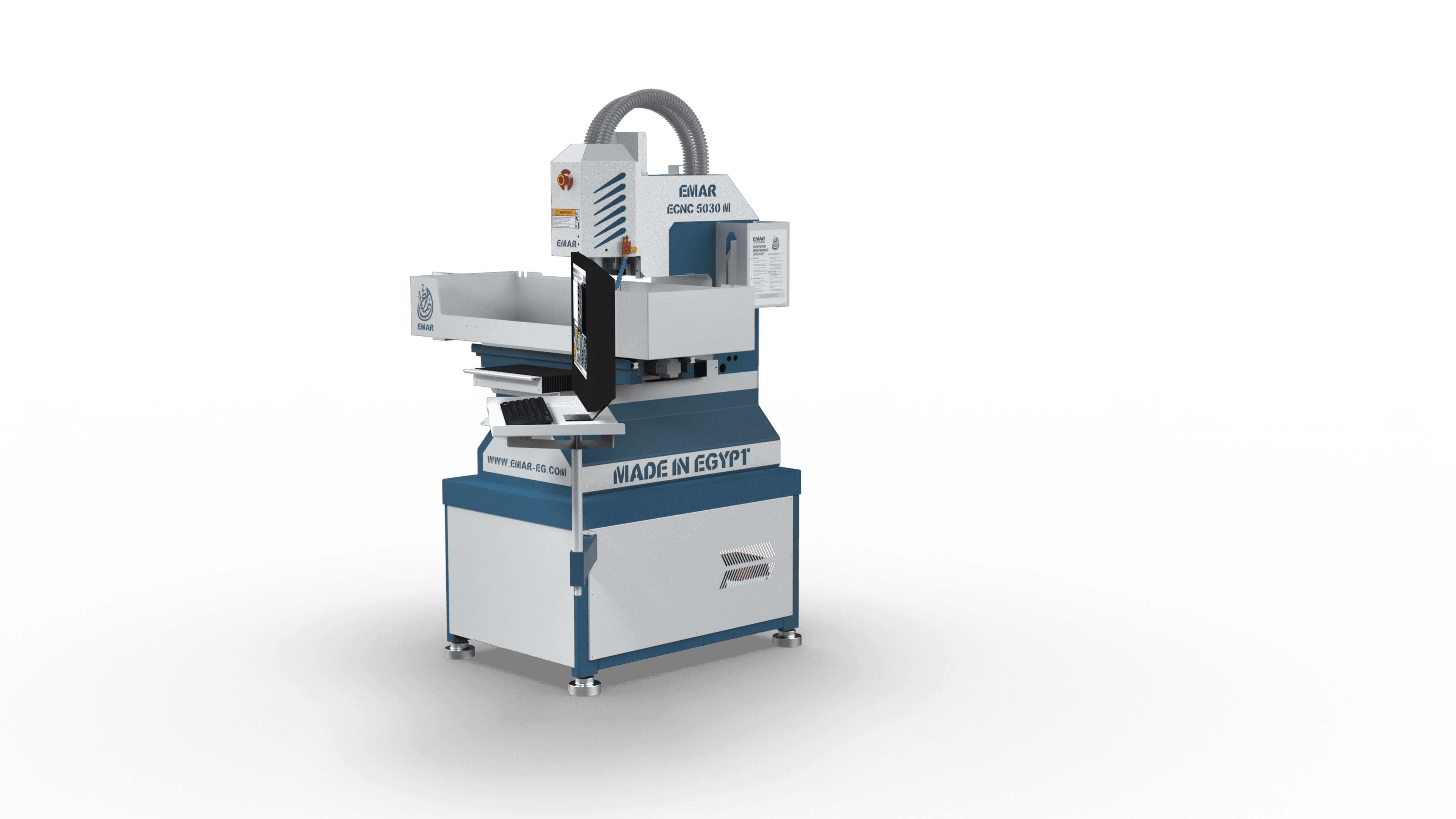

The ECNC 5030 M is built to provide reliable machining performance at an affordable cost, making it an excellent choice for small workshops, training centers, and everyday machining applications Its compact footprint makes installation easy, even in limited workspaces, while maintaining dependable performance. Designed for machining aluminum, copper, engineering plastics, and other non-ferrous materials, it can also be configured with optional features to match different production needs
Key Features & Benefits
Mach3 Control System
Easy-to-use control software that simplifies machine operation and supports smooth, reliable machining
Built-Up Section Chassis
A sturdy machine frame designed to provide stable performance and excellent value for everyday machining
High-Quality Components
Built with trusted HIWIN linear guides and TPI ball screws for smooth motion and dependable accuracy
Optional 4th Axis
Supports an optional rotary axis for machining more complex parts with greater flexibility
Water-Cooled Spindle
3.2 kW spindle running up to 24,000 RPM for stable cutting performance and clean surface finishes
Wet & Dry Machining
Supports both wet and dry machining, allowing you to work with different materials and applications
Technical Specifications
Full specifications for the ECNC 5030 M. Contact our team for custom configurations or application-specific requirements.
Download PDFCompatible Materials
Applications
- Footwear/rubber molds
- Pharmaceutical molds
- Machine parts
- Graphite electrodes
- Stamps
| Dimensions (W×D×H) | 1800×1000×1800 mm |
| Table Size | 550×350 mm |
| Axis Travel (X,Y,Z) | 500×300×160 mm |
| Spindle Nose-Table Distance | 0–200 mm |
| Number of Axes | 3–4 |
| Max Tool Diameter | 12 mm |
| Spindle Type | Water-cooled GDZ/HQD |
| Spindle Power/Speed | 3.2 kW @ 24,000 rpm |
| Table Type/Max Load | Flat bed / 100 kg |
| Control System | Mach-3 |
Get a Quote for the ECNC 5030 M
Contact our sales team for the best price and unit availability. We respond within hours.
