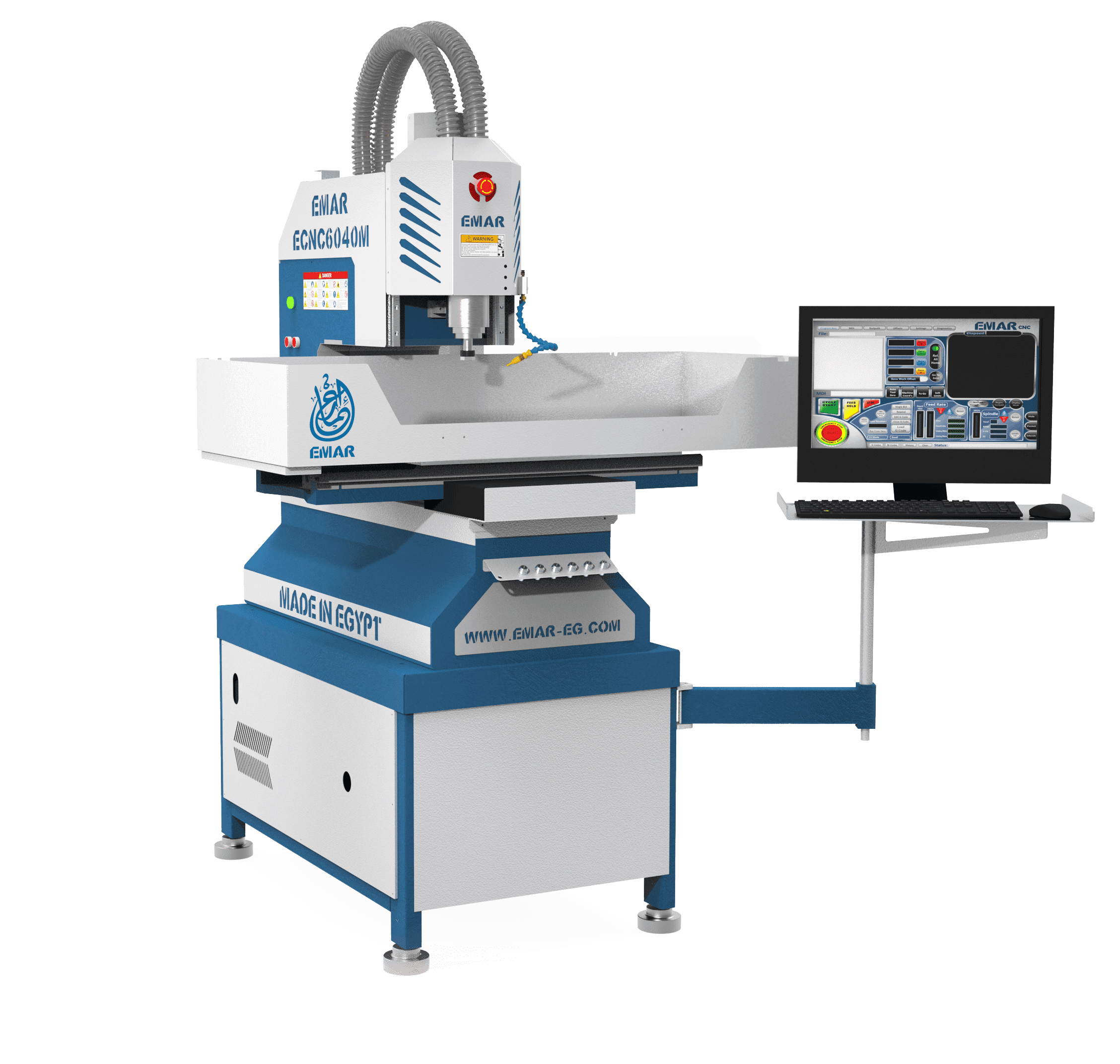

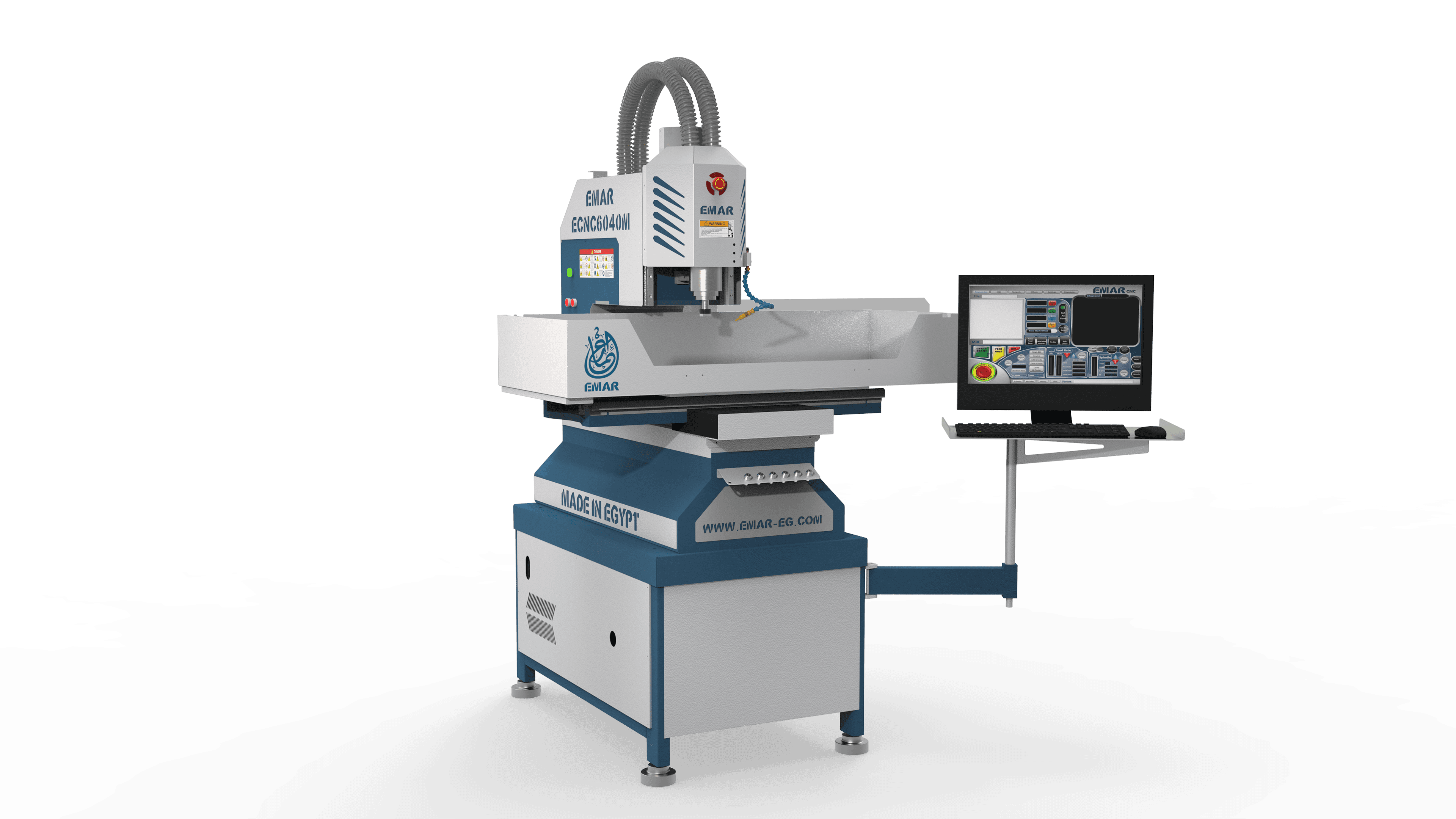

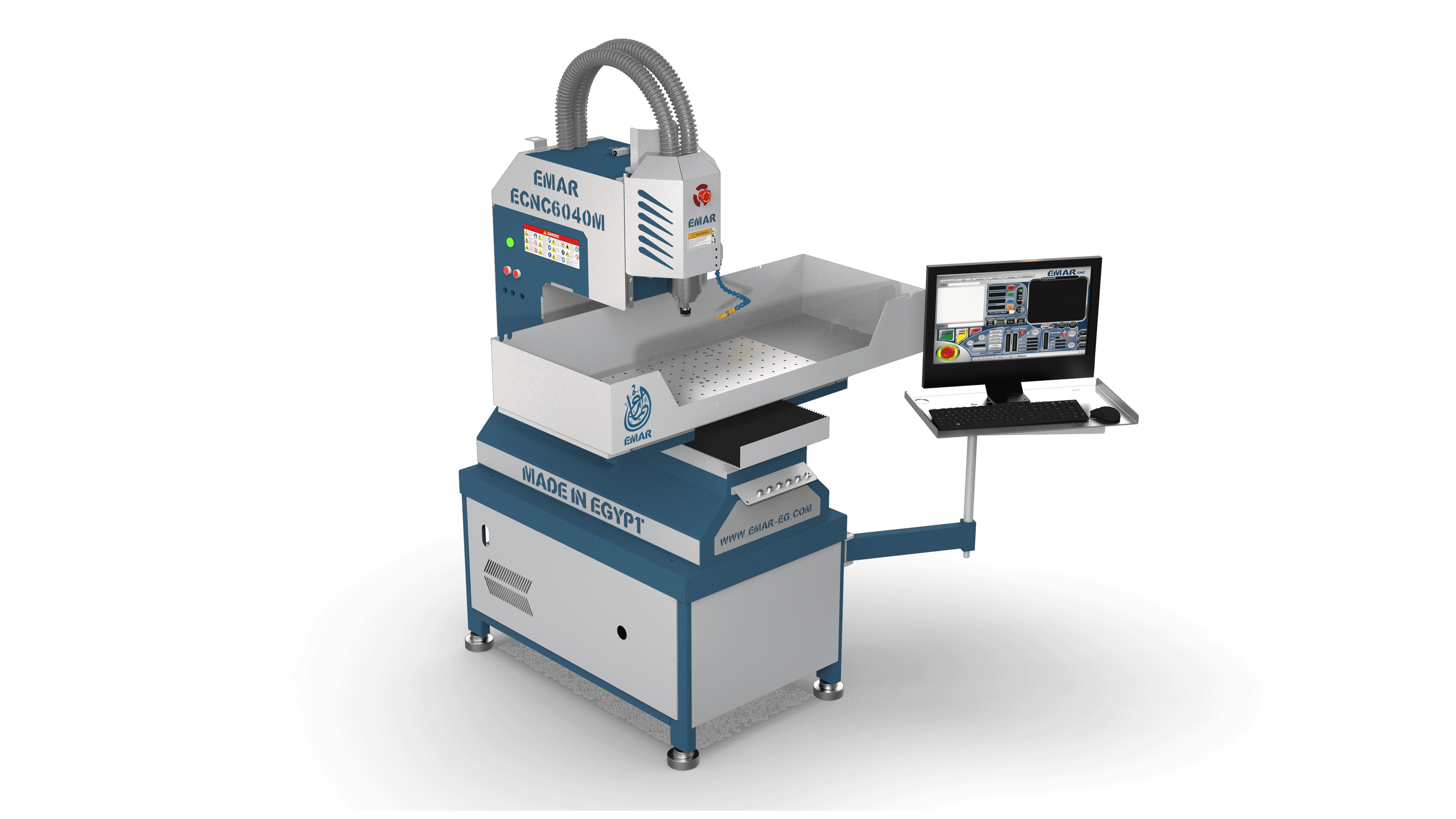

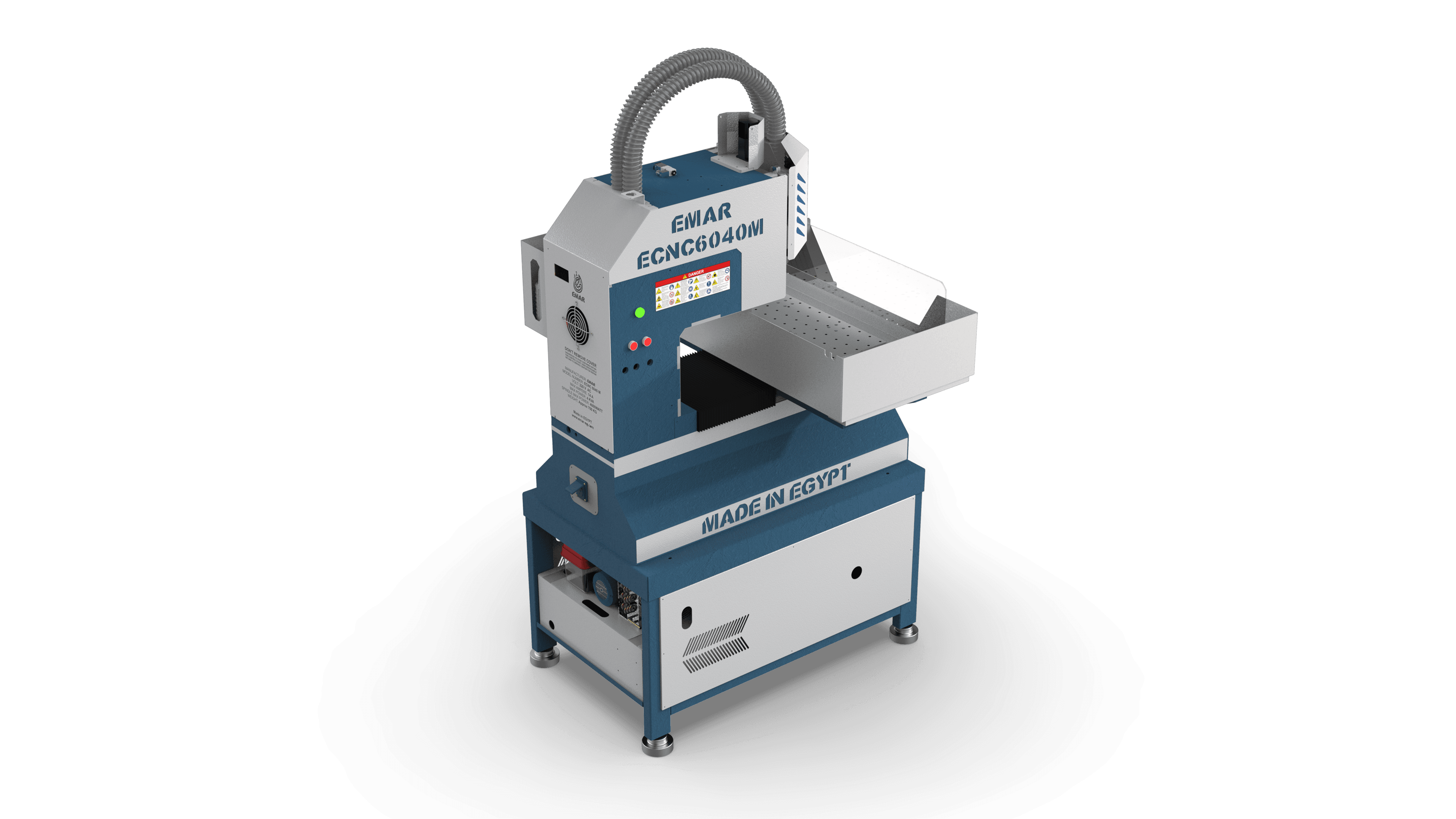

ECNC6040M
An Affordable Start for Soft Metal Machining
The ECNC 6040 M is designed to deliver reliable machining performance at an accessible cost, making it an ideal choice for small workshops, training centers, and light production environments Its compact footprint allows easy installation in a wide range of workspaces while maintaining the flexibility needed for everyday machining. Designed for soft metals such as aluminum and copper, it also supports engineering plastics and other non-ferrous materials, with upgrade options to match different production requirements
Key Features & Benefits
Mach-3 Control
Interactive, user-friendly Mach-3 control system.
Built-Up Section Chassis
Optimum efficiency, highest performance-to-price ratio.
High-Quality Components
Leading HIWIN linear and TPI bearing components.
4-Axis Simultaneous Machining
High-precision 4-axis rotary capability.
Water-Cooled Spindle
3.2 kW at 24,000 RPM for precise finishing.
Wet & Dry Processing
Flexible operation for diverse material requirements.
Technical Specifications
Full specifications for the ECNC 6040 M . Contact our team for custom configurations or application-specific requirements.
Download PDFCompatible Materials

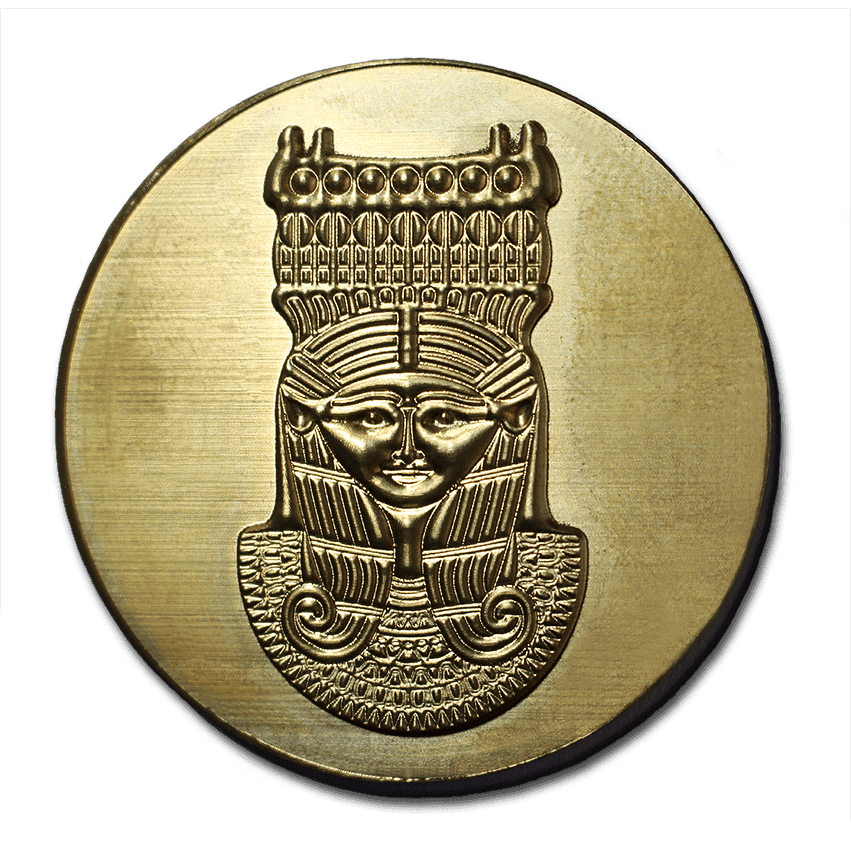

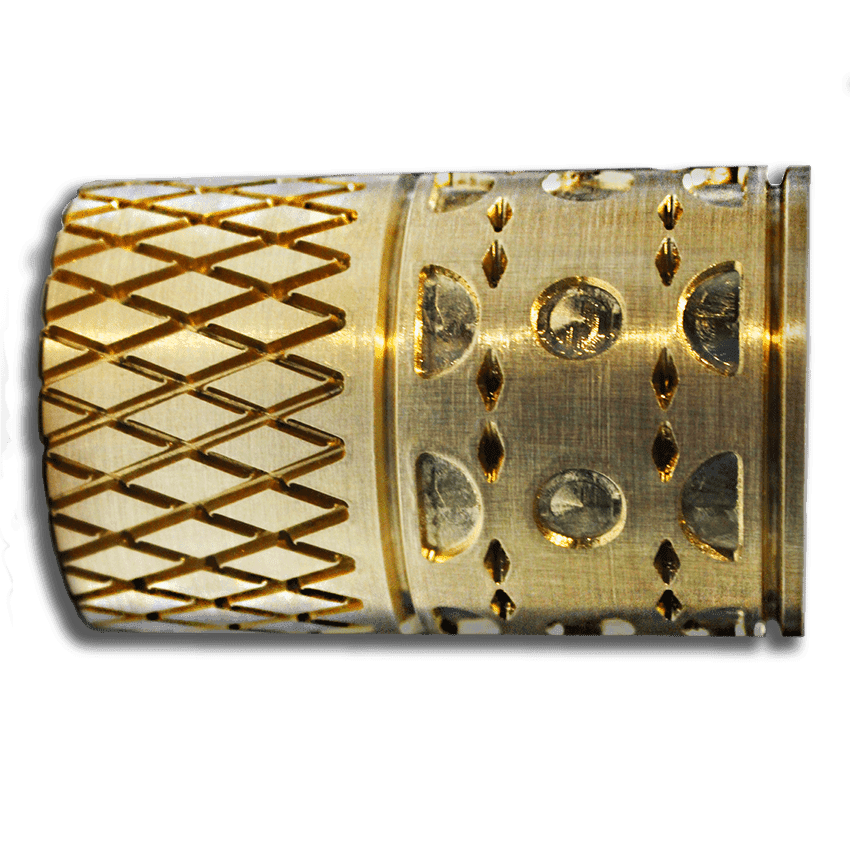

Applications
- Footwear molds
- Rubber dies
- Machine parts
- Graphite electrodes
- High-precision drilling
| Dimensions (W×D×H) | 2000×1400×2000 mm |
| Table Size | 650×450 mm |
| Axis Travel (X,Y,Z) | 600×400×170 mm |
| Spindle Nose-Table Distance | 0–200 mm |
| Number of Axes | 3–4 |
| Max Tool Diameter | 12 mm |
| Spindle Type | Water-cooled GDZ/HQD |
| Spindle Power/Speed | 3.2 kW @ 24,000 rpm |
| Table Type/Max Load | Flat bed / 100 kg |
| Control System | Mach-3 |
Get a Quote for the ECNC 6040 M
Contact our sales team for the best price and unit availability. We respond within hours.
