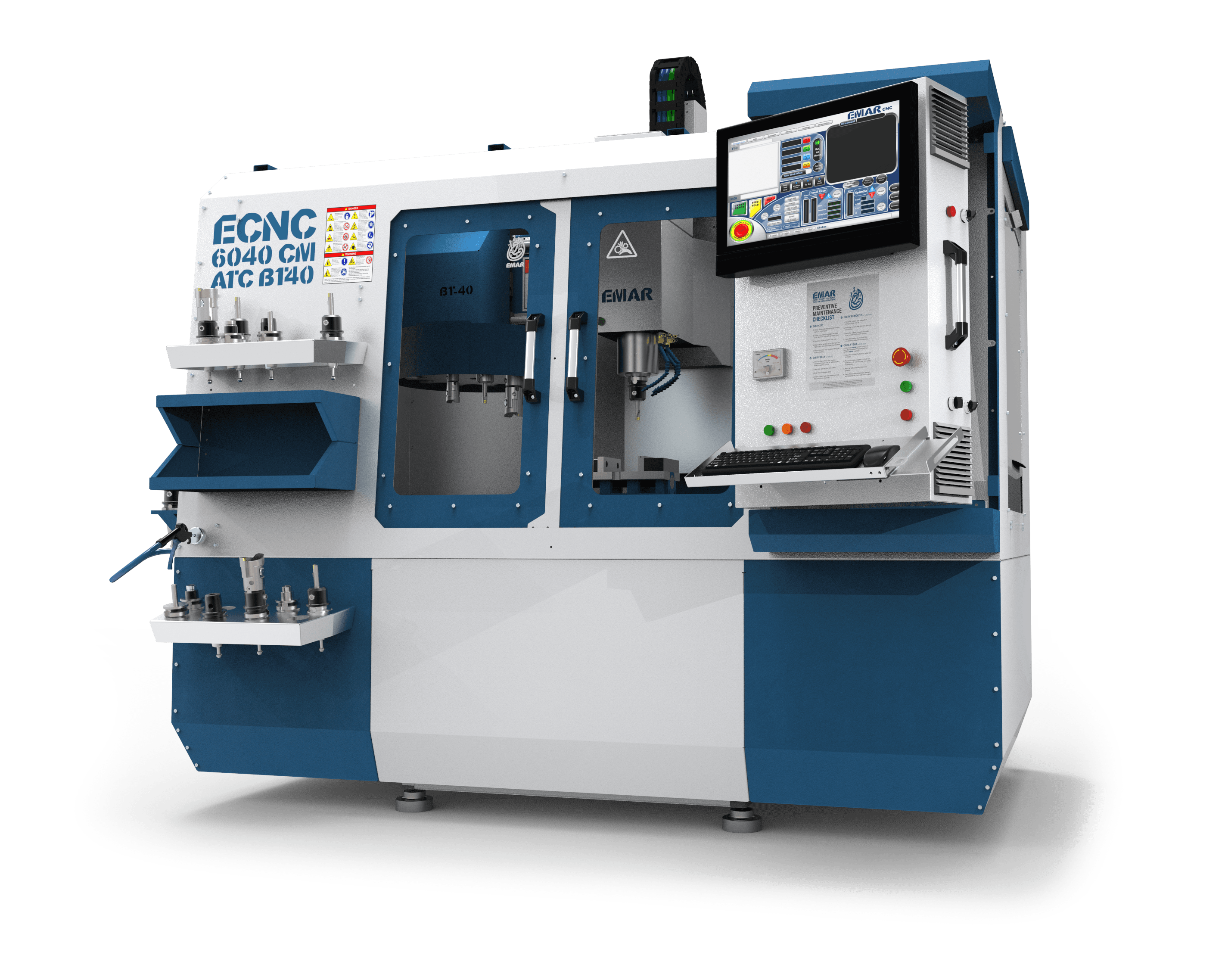

ECNC6040CM
Faster Production .. Less Downtime
The ECNC 6040 CM BT40 is designed for manufacturers looking to increase productivity while reducing production downtime Equipped with a BT40 spindle, automatic tool changer, and industrial-grade motion components, it delivers stable machining, reliable accuracy, and faster cycle times across a wide range of metalworking applications
Key Features & Benefits
Cast Iron Structure
The cast iron structure reduces vibration, supporting stable machining and consistent accuracy
BT40 High-Performance Spindle
Delivers the power and rigidity required for demanding metal machining applications
Automatic Tool Changer (ATC)
Automatically changes tools during machining, helping reduce cycle times and improve production efficiency
Hard Metal Capability
Suitable for machining stainless steel, titanium, hardened steel, cast iron, aluminum, brass, and copper
4th & 5th Axis Ready
Supports optional 4th and 5th axis configurations for machining more complex parts with fewer setups
Fully Enclosed Structure
Keeps chips and coolant contained inside the machine for a cleaner and safer working environment
Technical Specifications
Full specifications for the ECNC 6040 CM. Contact our team for custom configurations or application-specific requirements.
Download PDFCompatible Materials
| Dimensions (W×D×H) | 2500×1700×2150 mm |
| Table Size | 1150×410 mm |
| Axis Travel (X,Y,Z) | 600×400×400 mm |
| Number of Axes | 3-5 |
| Spindle Type | BT40 |
| Spindle Power/Speed | 7.5 kW / 12,000 rpm |
| Max Tool Holder Diameter | 40 mm |
| Spindle Nose-Table Distance | 0–400 mm |
| Table Type/Max Load | T-Slot bed / 250 kg |
| Control System | Mach-3 |
Get a Quote for the ECNC 6040 CM
Contact our sales team for the best price and unit availability. We respond within hours.
