ECNC100304A
Unlimited Options .. One Machine

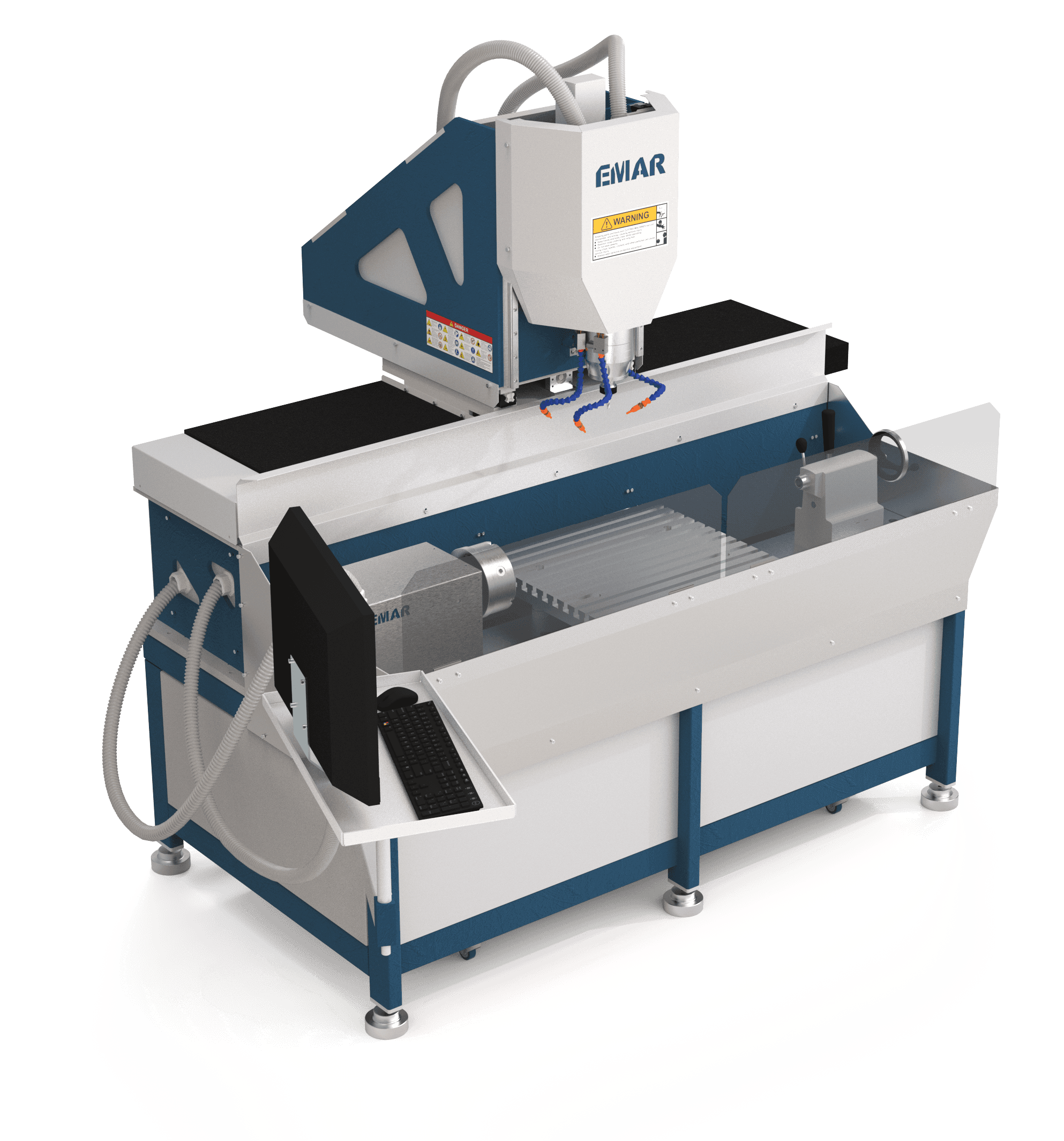

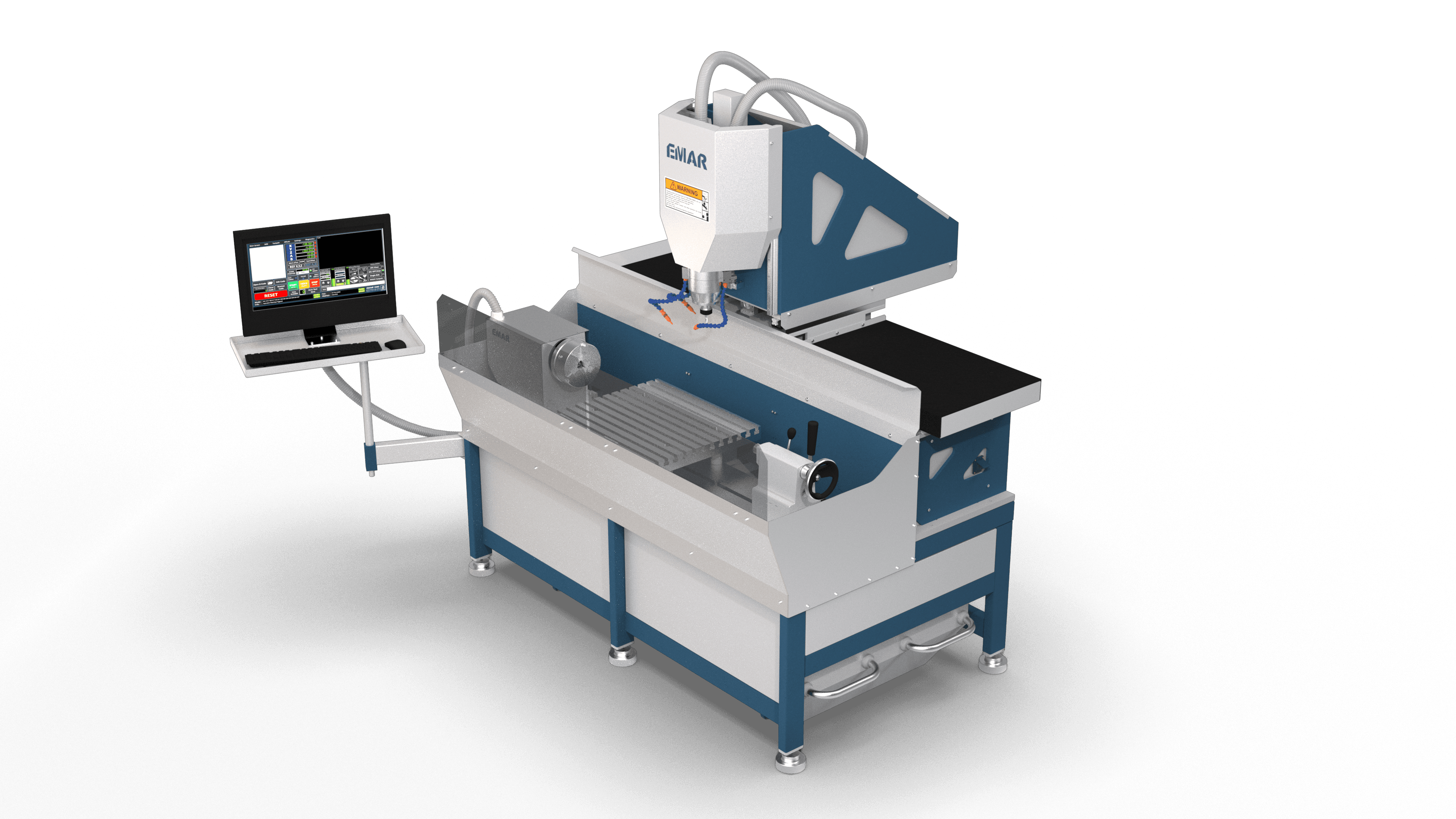

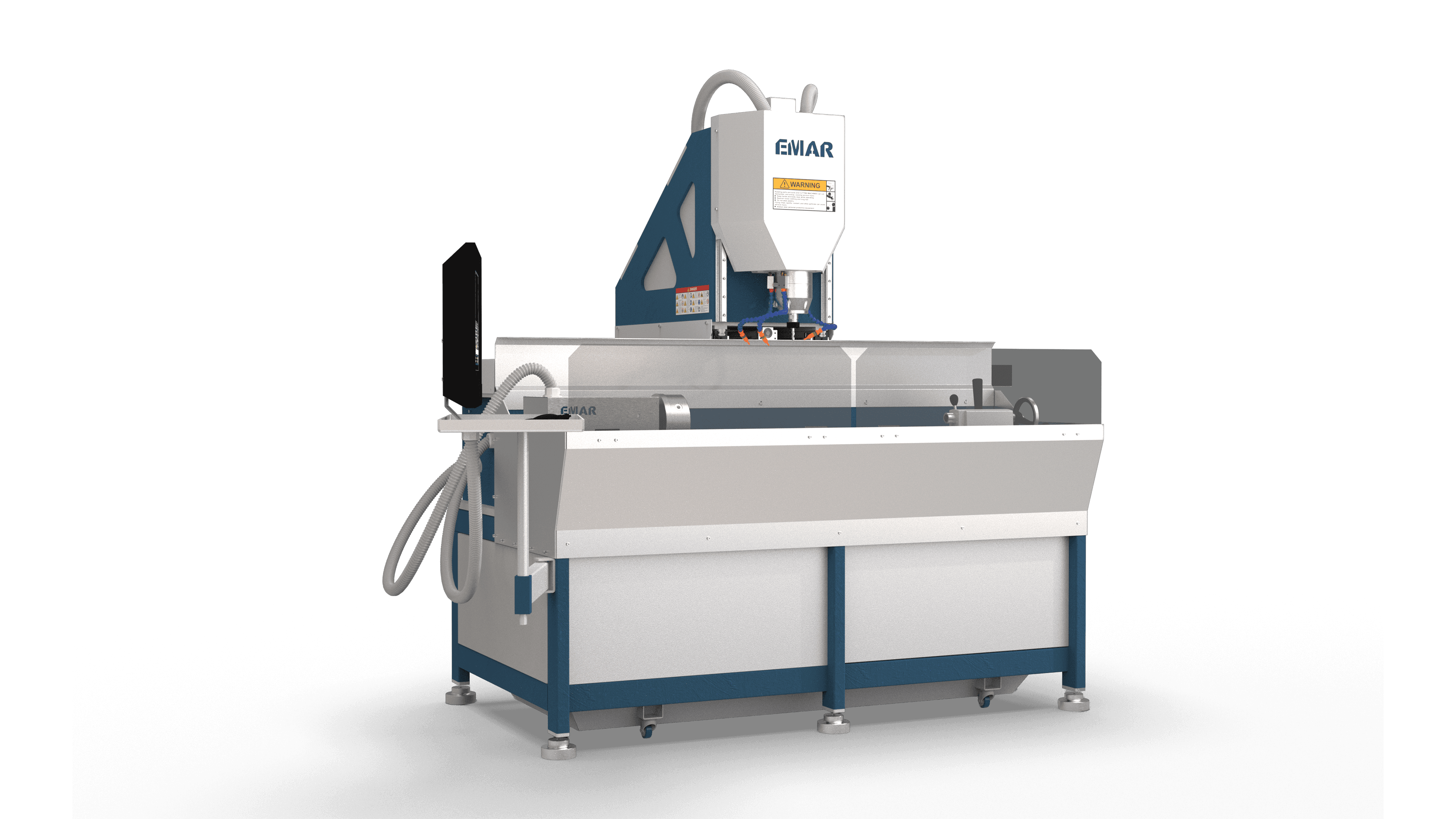

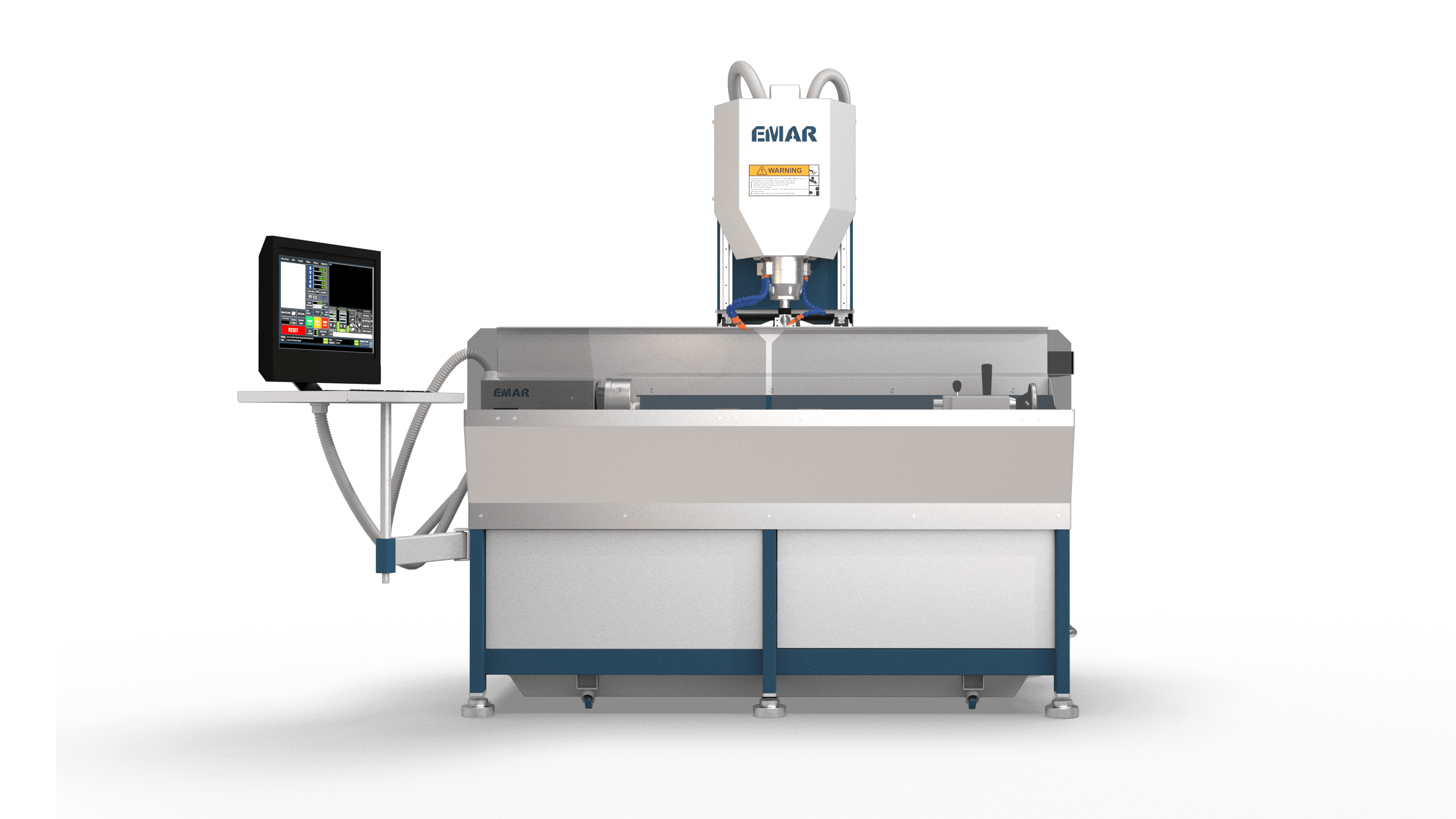

The ECNC 10030 M 4A is designed for manufacturers who need greater flexibility in a single machine. Combining conventional milling with a rotary fourth axis, it expands machining capabilities across a wide range of industrial applications. With a large working area, a 4 kW water-cooled spindle, and a rigid industrial structure, the machine delivers stable performance for both flat and cylindrical workpieces
Key Features & Benefits
Mach3 Control System
An intuitive control platform that simplifies machine operation and program management
Built-Up Section Chassis
Optimum efficiency with the highest performance-to-price ratio
High-Quality Motion Components
Equipped with HIWIN linear guideways for smooth motion, consistent accuracy, and reliable long-term performance
Rotary Axis (4th Axis)

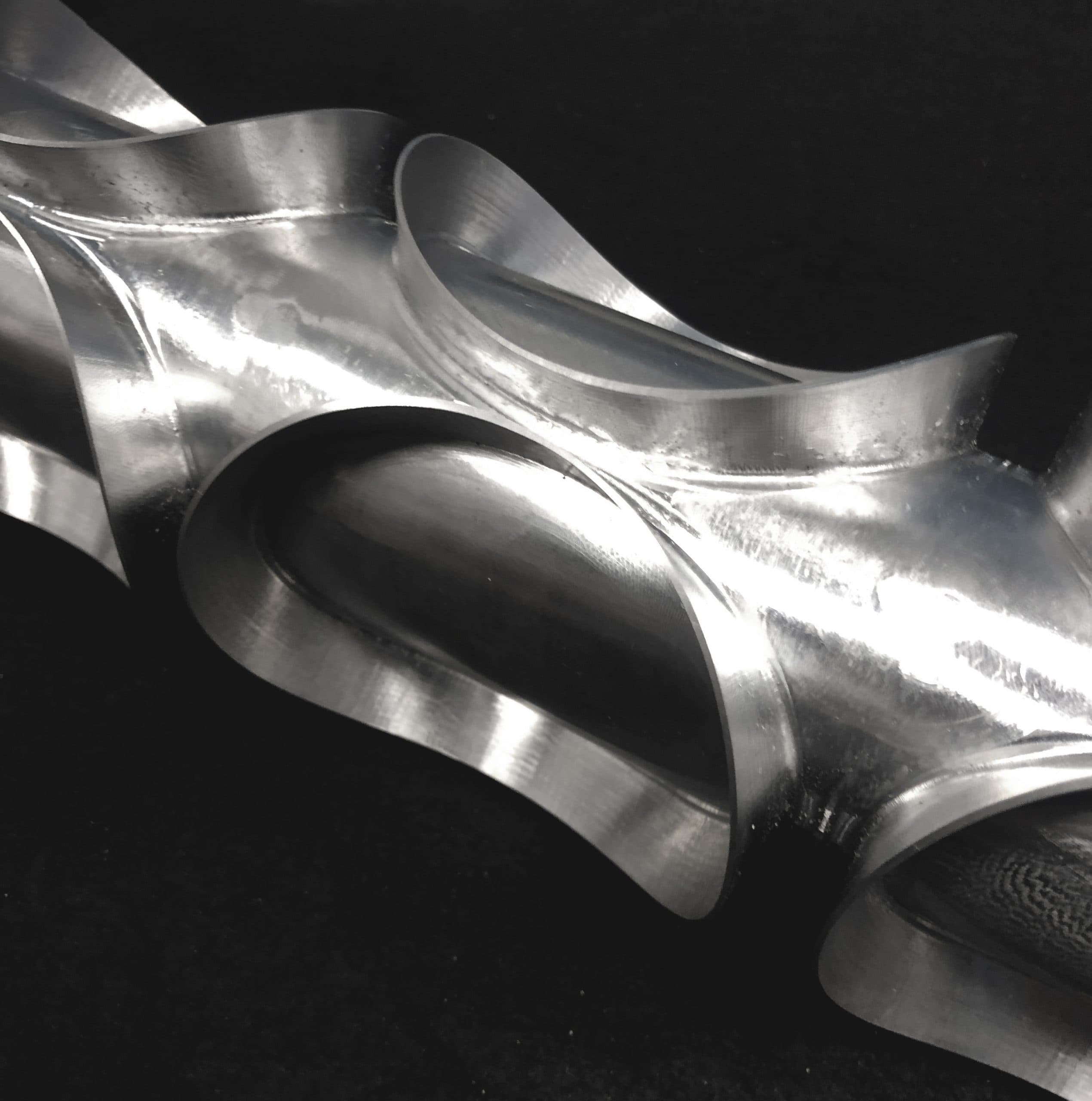

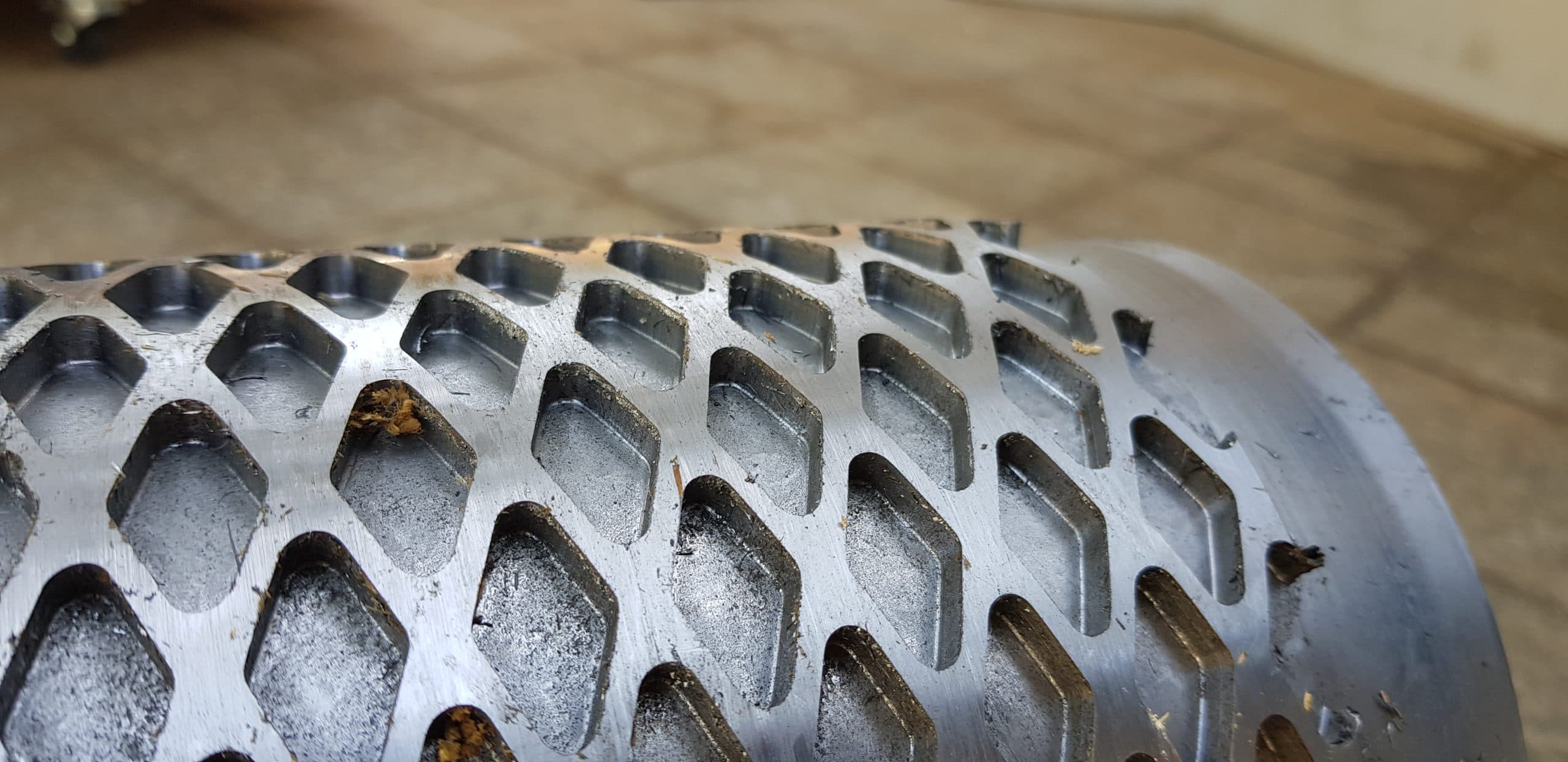

Adds rotary machining capability for cylindrical parts, expanding the range of components that can be produced on a single machine
Water-Cooled Spindle
A 4 kW spindle operating up to 24,000 RPM delivers reliable performance across a wide range of machining operations
Large Working Area
A 1000 × 300 mm table with 1000 × 300 × 300 mm travel provides the flexibility to machine a wide variety of parts
Technical Specifications
Full specifications for the ECNC 10030 4A. Contact our team for custom configurations or application-specific requirements.
Download PDFCompatible Materials
| Dimensions (W×D×H) | 2500×1500×2200 mm |
| Table Size | 1000 × 300 mm |
| Axis Travel (X,Y,Z) | 1000 × 300 × 300 mm |
| Maximum Workpiece Diameter (Rotary Axis) | 400 mm |
| Number of Axes | 4 |
| Max Tool Diameter | 12 mm |
| Spindle Power/Speed | 5.5 kW / 24,000 rpm |
| Max Load | 200 kg |
| Control System | Mach-3 |
| Motors | Closed Loop Hybrid Stepper Servo |
Get a Quote for the ECNC 10030 4A
Contact our sales team for the best price and unit availability. We respond within hours.
