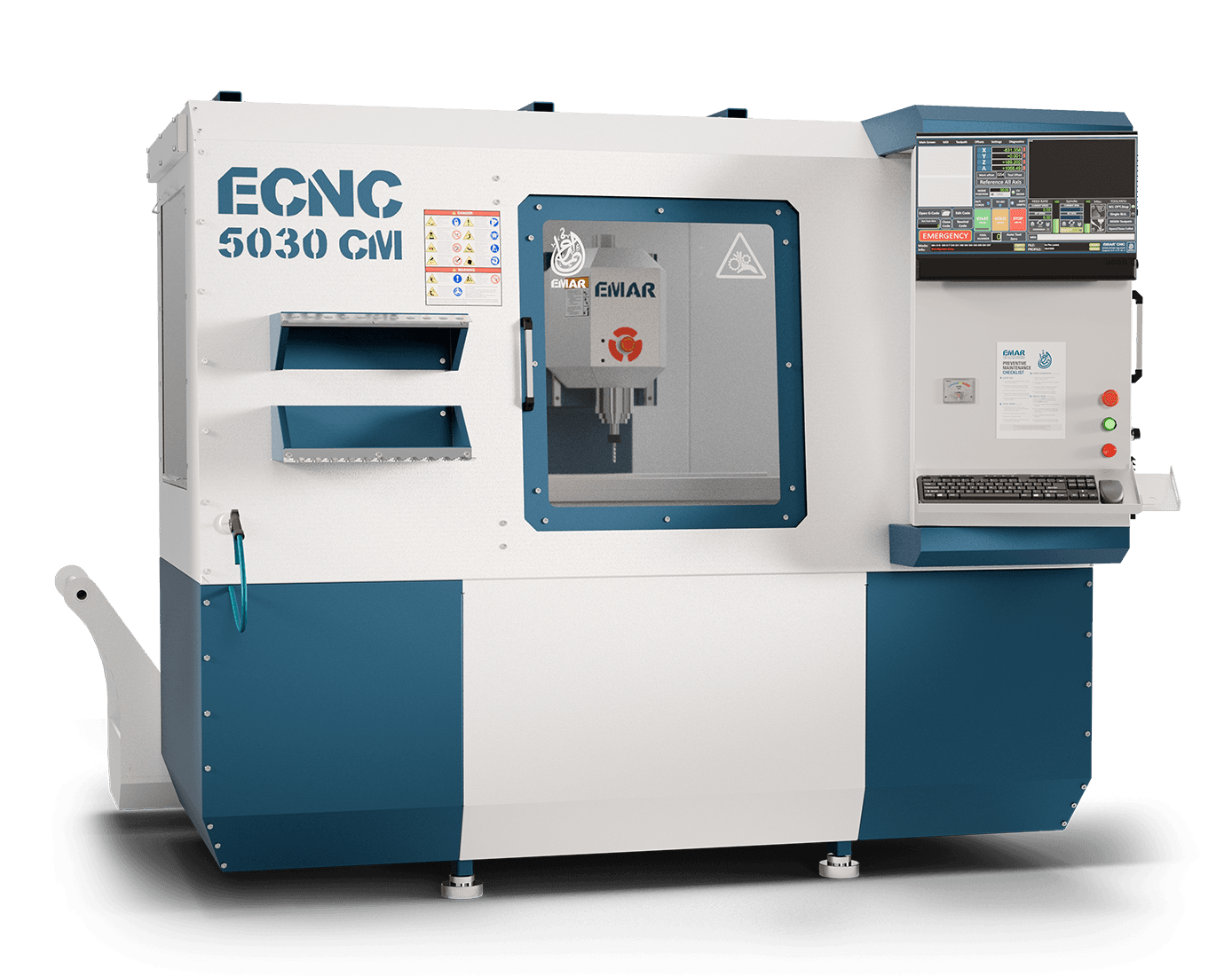

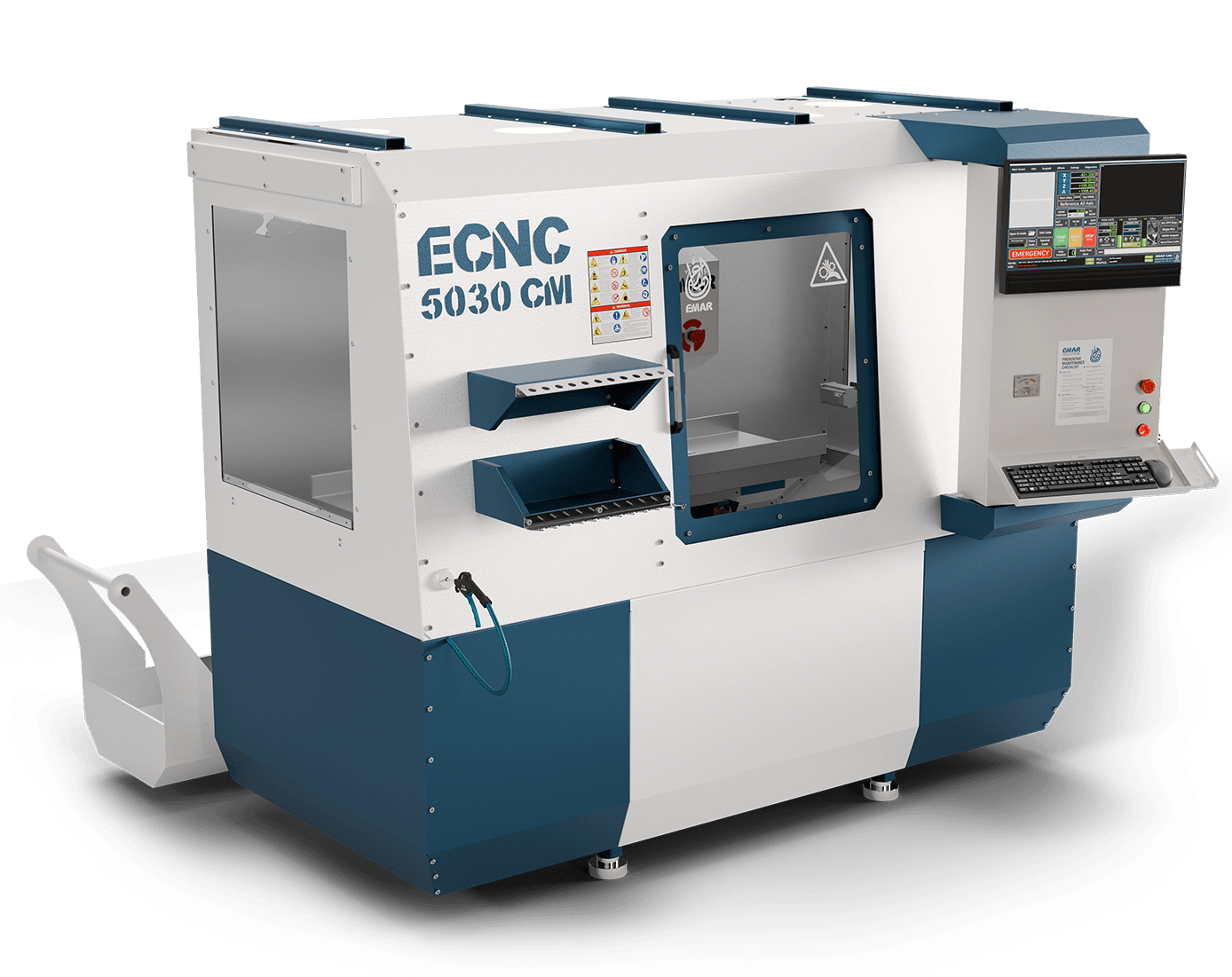

ECNC5030CM
Industrial Hard Metal Machining in a Compact Footprint
The ECNC 5030 CM combines a rigid cast iron structure, industrial components, and high-speed machining performance in a machine designed for manufacturers who need reliable production without the space or investment required by larger machining centers
Key Features & Benefits
Compact Industrial Design
Small machine footprint without compromising machining stability or production capability
Reliable Daily Production
Designed for continuous machining while maintaining stable performance across everyday production
Consistent Accuracy
HIWIN linear guideways and industrial-grade motion components help maintain repeatable machining performance over long operating hours
4th & 5th Axis Ready
Supports optional 4th and 5th axis configurations for machining more complex geometries while reducing multiple setups
Closed Cover Protection
The enclosed design helps reduce chip and coolant dispersion while supporting a safer machining environment
Stable Machining
The cast iron structure reduces vibration, supporting stable machining and consistent accuracy
Technical Specifications
Full specifications for the ECNC 5030 CM. Contact our team for custom configurations or application-specific requirements.
Download PDFCompatible Materials
Applications
- Mold dies
- Sheet metal work
- Precision drilling
- Machine parts
| Dimensions (W×D×H) | 2500×1400×2000 mm |
| Table Size | 740×350 mm |
| Axis Travel (X,Y,Z) | 500×300×150 mm |
| Number of Axes | 3–4 |
| Spindle Power/Speed | 4.2 kW / 24,000 rpm |
| Max Tool Diameter | 12 mm |
| Table Type/Max Load | T-Slot bed / 200 kg |
| Control System | Mach-3 |
| Motors | Closed Loop Hybrid Stepper Servo |
| Guides & Bearings | HIWIN/TPI |
Get a Quote for the ECNC 5030 CM
Contact our sales team for the best price and unit availability. We respond within hours.
