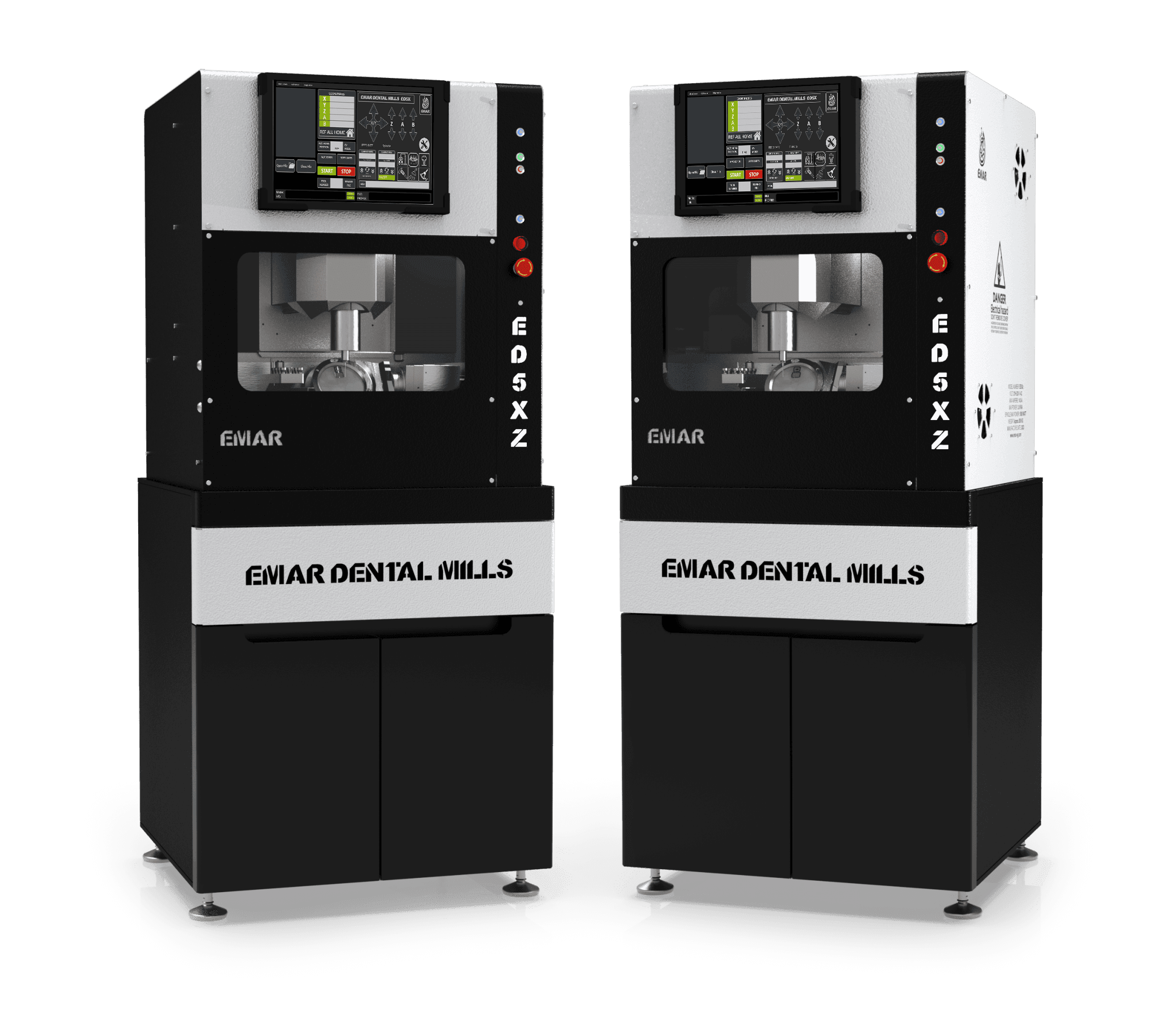

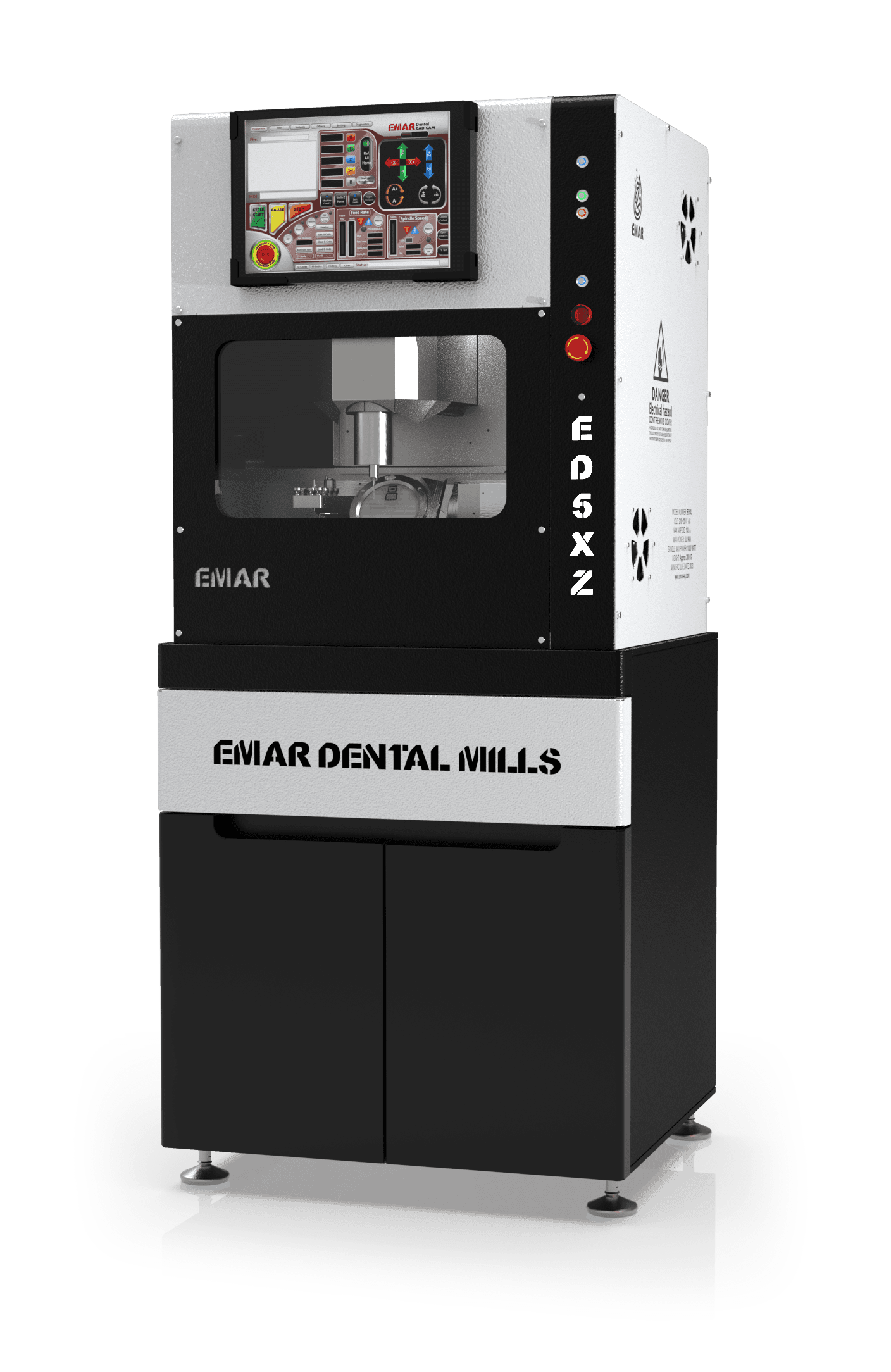

ED5Xz
5-Axis Milling for Compact Dental Labs
The ED5Xz is designed for Small Dental Labs that need a compact Dental Milling Machine combining precision, stability, and ease of operation in a space-efficient setup With 5-Axis Simultaneous Machining, it handles complex details, Undercuts, and Diverging Stumps with greater flexibility, while the Automatic Tool Change System helps maintain a smooth and efficient workflow
Key Features & Benefits
5-Axis Simultaneous Milling
Simultaneous 5-axis movement provides greater access to complex details, Undercuts, and Diverging Stumps, reducing the need for repositioning and reworking
Automatic Tool Change
The automatic tool change system with an 11-Bur Magazine helps reduce manual intervention and maintain a smooth Dental Lab workflow
60,000 RPM Water-Cooled Spindle
A 2.5 kW Water-Cooled Spindle with speeds up to 60,000 RPM delivers the high-speed performance needed for precise dental milling and fine surface finishes
Hybrid Steel & Aluminum Structure
The structure combines Steel and Aerospace-Grade Aluminum to provide high rigidity while helping reduce vibration and noise during milling
Dry & Wet Machining
Supports both Dry Milling and Wet Machining, giving Dental Labs greater flexibility across different materials and applications
Around-the-Clock Operation
Designed for continuous operation while maintaining consistent milling quality, making the ED5Xz suitable for Dental Labs with demanding daily production requirements
Technical Specifications
Full specifications for the ED5Xz. Contact our team for custom configurations or application-specific requirements.
Download PDFCompatible Materials
Applications
- Copings
- Crowns
- Inlays
- Onlays
- Bridges (3–14 units)
- Splints
- Titanium abutments
| Dimensions (W×D×H) | 690 x 730 x 1700 mm |
| Number of Axes | 5 |
| Tool Magazine Capacity | 11 burs |
| Spindle Type | ATC water-cooled |
| Spindle Power/Speed | 2.5 kW / 60,000 rpm |
| Material Loading | Manual single blank holder |
| Processing Modes | Dry / Wet |
| Chassis Material | Hybrid steel & aluminum |
| Control System | Mach-3 |
| Weight | 350 kg |
