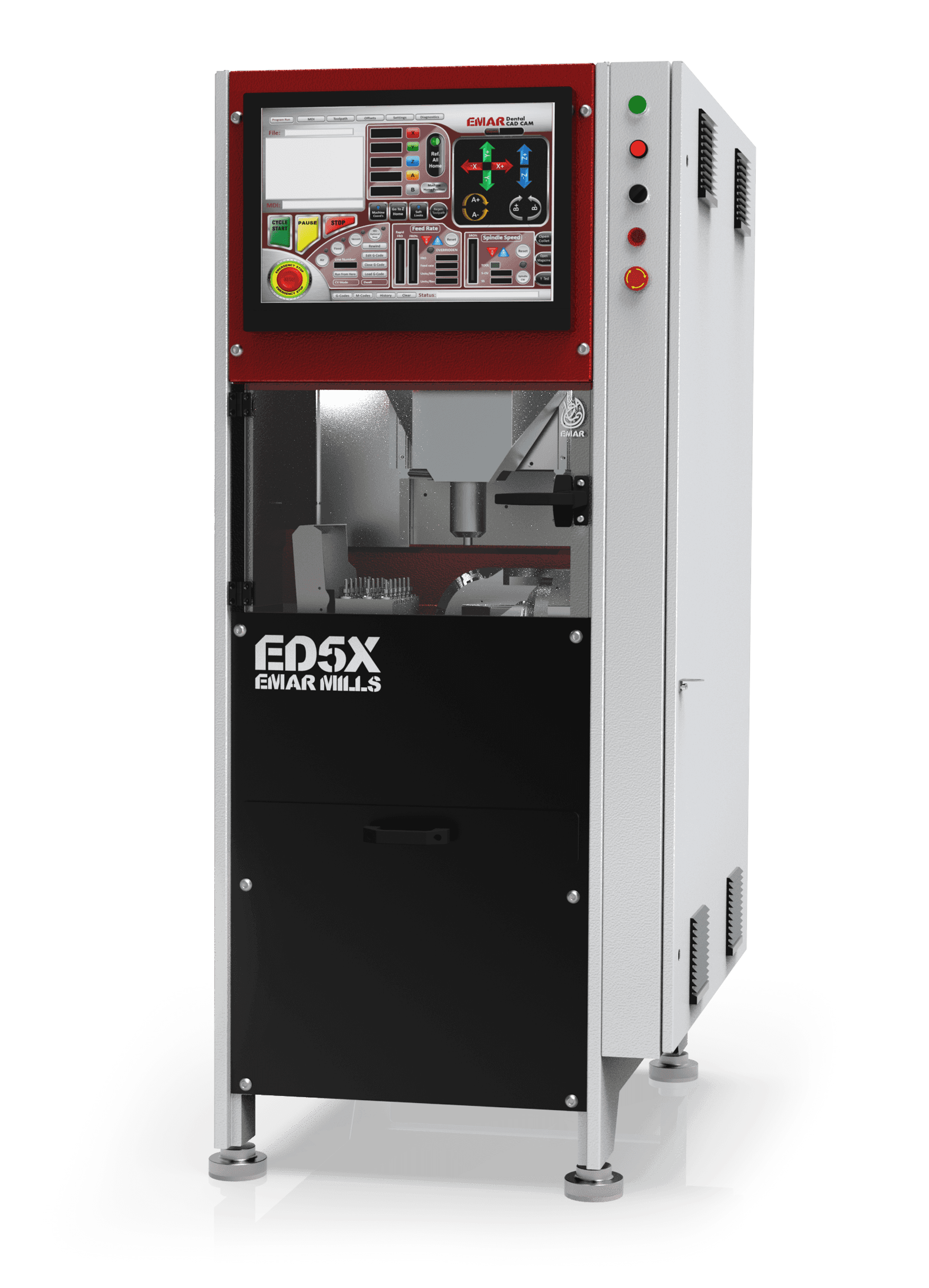

ED5X
5-Axis Milling for More Complex Dental Work
The ED5X is designed for dental labs that need greater flexibility when milling complex details, with 5-Axis Simultaneous Machining and support for both Dry Milling and Wet Processing It can process a wide range of Dental Materials, including Zirconia, PMMA, Titanium, CoCr, PEEK, Ceramics, and more, with a 60,000 RPM Water-Cooled Spindle and a Hybrid Cast Iron & Aluminum structure that provides high stability during milling
Key Features & Benefits
5-Axis Simultaneous Milling
Simultaneous 5-axis movement provides greater access to complex details, undercuts, and diverging stumps, supporting more precise and efficient milling.
60,000 RPM Water-Cooled Spindle
A 2.5 kW water-cooled spindle with speeds up to 60,000 RPM delivers the high-speed performance required for detailed dental milling and smooth surface finishes.
Automatic Tool Change
The automatic tool change system reduces manual intervention during milling and helps keep production moving through different machining steps.
Hybrid Cast Iron & Aluminum Structure
The hybrid structure combines Grey Cast Iron with Aerospace-Grade Aluminum to provide high rigidity while helping reduce vibration and noise during milling.
Dry & Wet Processing
Supports both Dry Milling and Wet Processing, giving dental labs greater flexibility across different materials and applications.
Around-the-Clock Operation
ED5X is engineered for continuous operation, making it suitable for dental labs and milling centers with demanding daily production requirements.
Technical Specifications
Full specifications for the ED5X. Contact our team for custom configurations or application-specific requirements.
Download PDFCompatible Materials

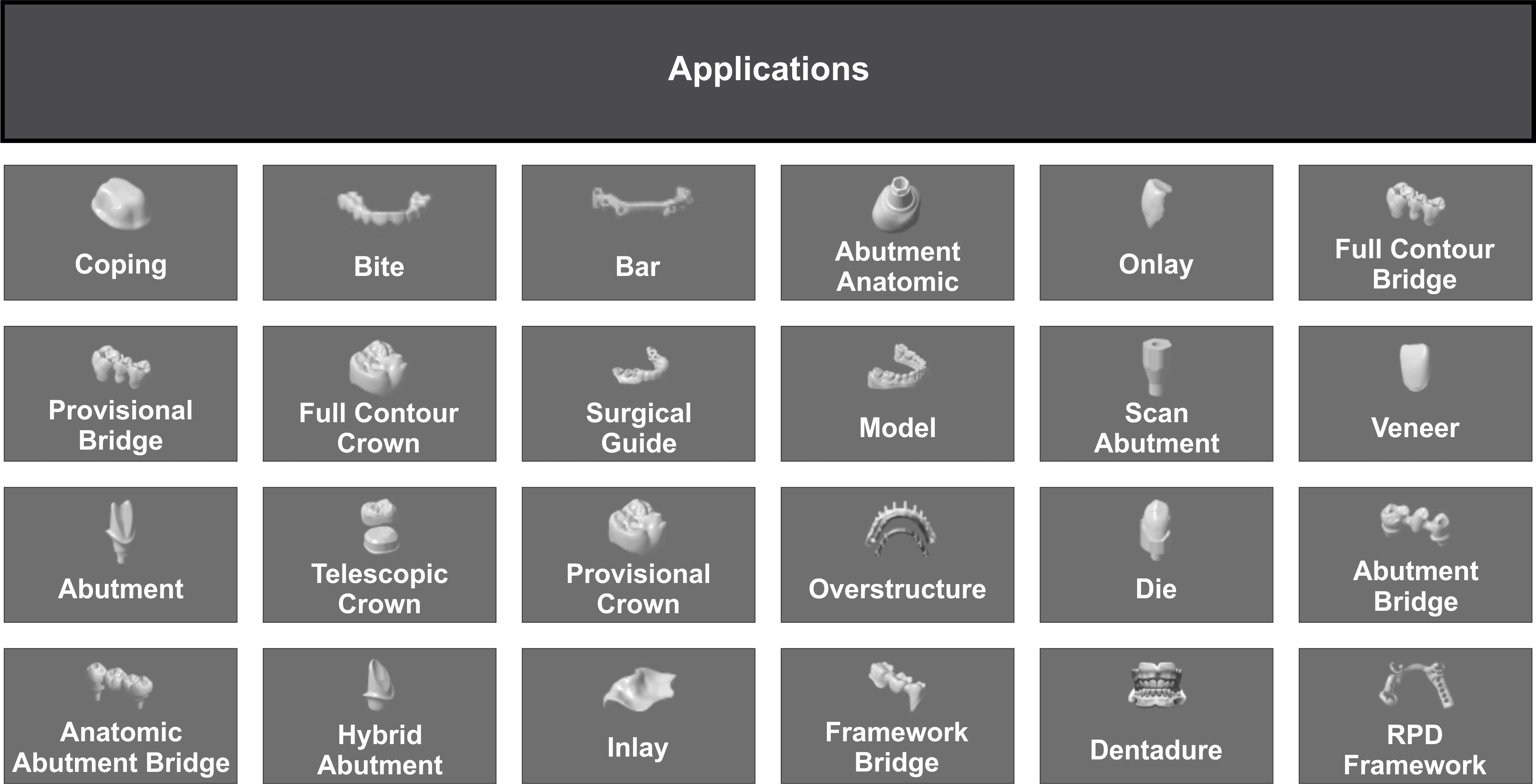

Applications
- Copings
- Crowns
- Inlays
- Onlays
- Bridges (up to 14 units)
- Abutments

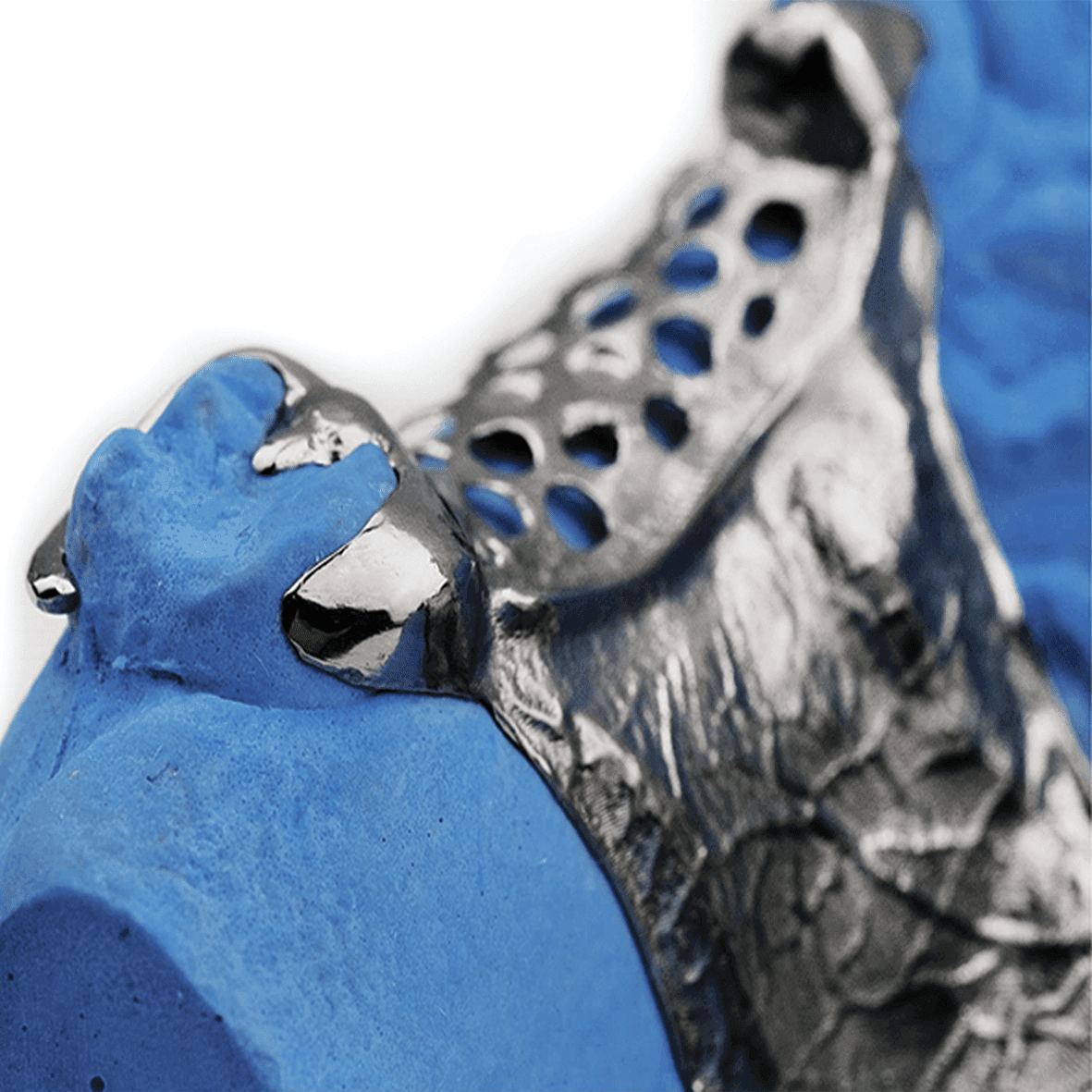

- Implant restorations
| Dimensions (W×D×H) | 780×1000×1650 mm |
| Number of Axes | 5 |
| Tool Magazine Capacity | 21 tools |
| Spindle Type | ATC water-cooled |
| Spindle Power/Speed | 2.5 kW / 60,000 rpm |
| Material Loading | Manual single blank holder |
| Processing Modes | Dry / Wet |
| Chassis Material | Hybrid cast iron & aluminum |
| Control Software | Mach-3 |
| Weight | 750 kg |
Get a Quote for the ED5X
Contact our sales team for the best price and unit availability. We respond within hours.
