CNCPressBrake
Servo-driven. DSP laser angle sensing. 5 μm precision.

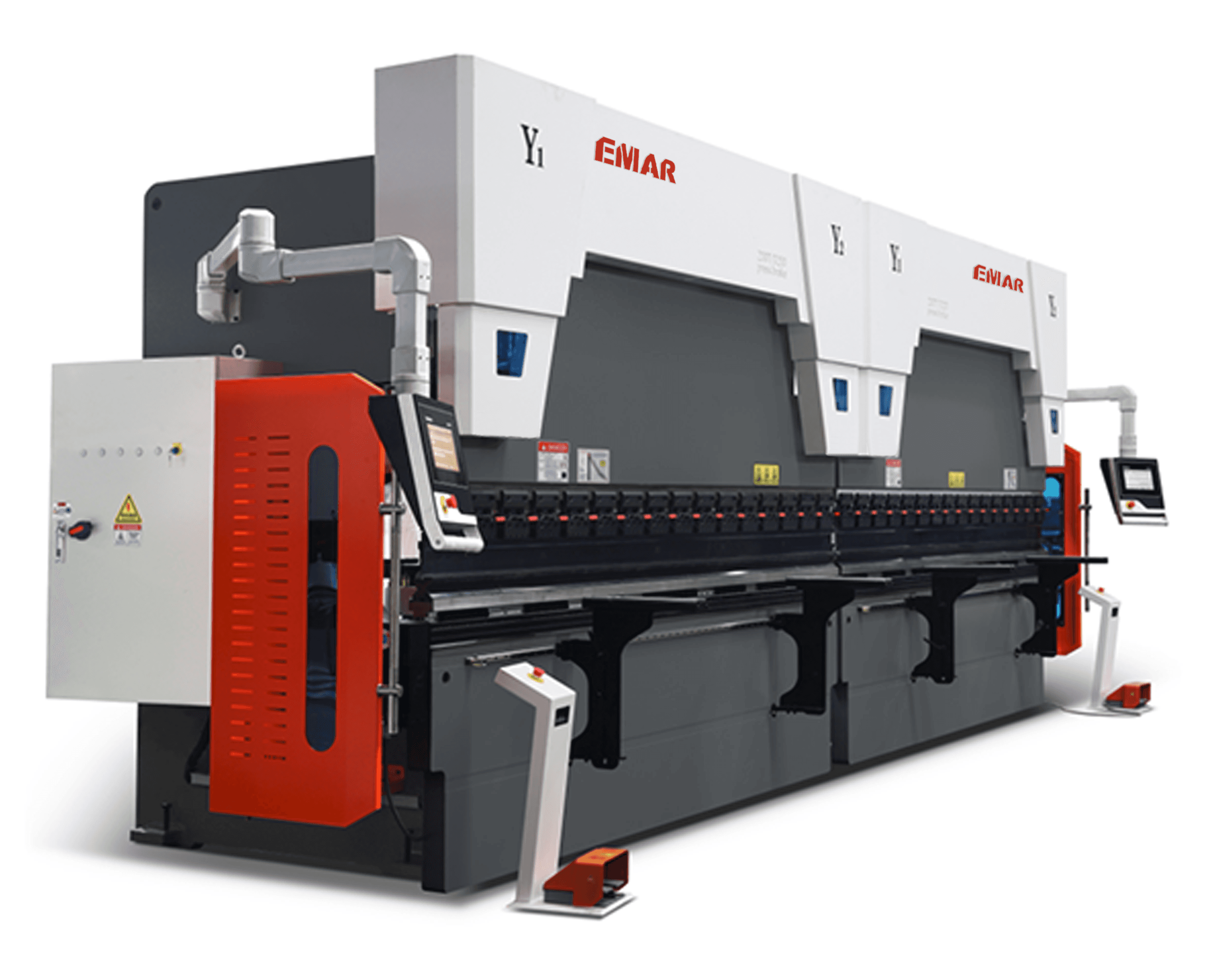

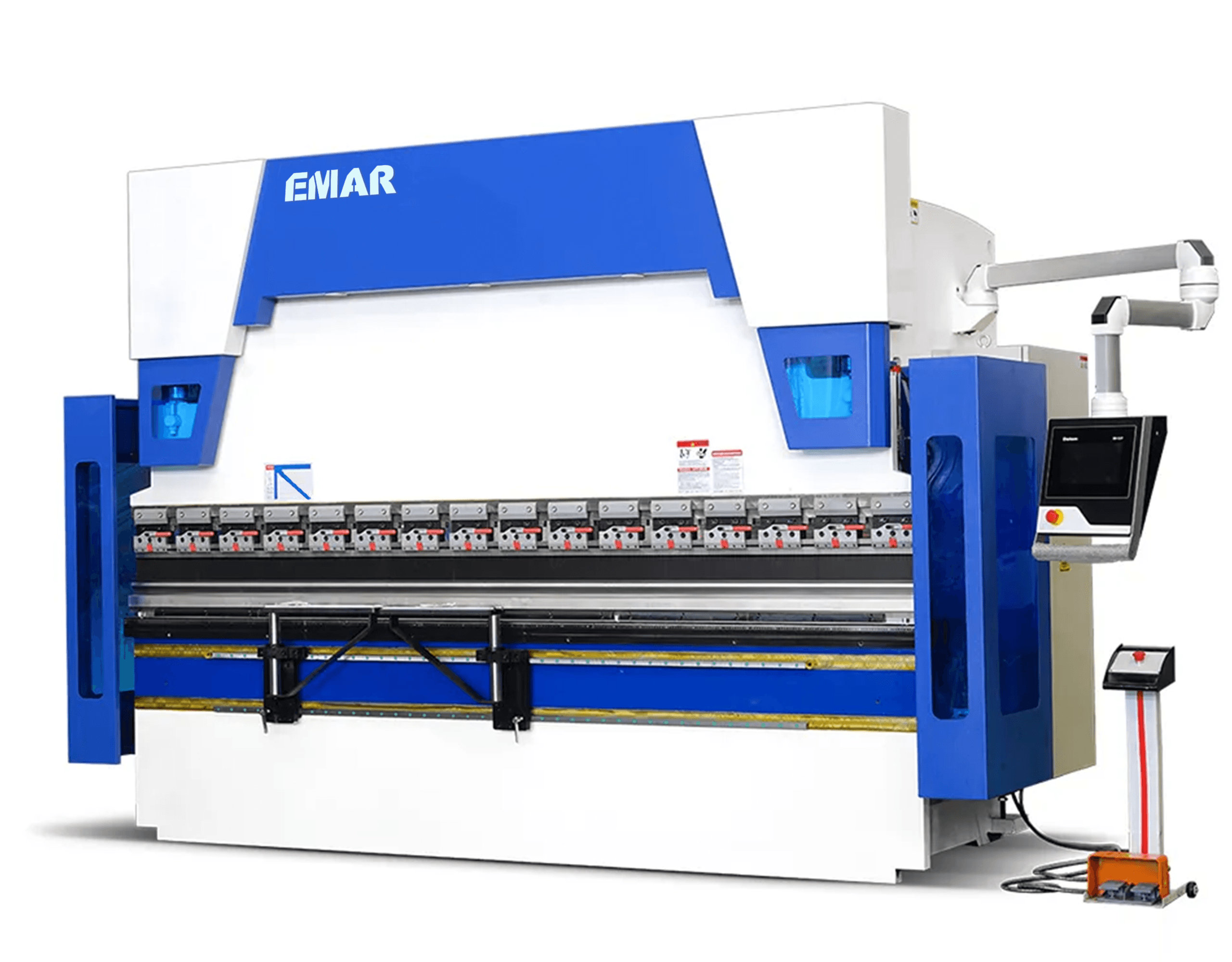

High-end oil-electric hybrid CNC press brake with servo-driven pump, DSP laser angle measurement, automatic crowning compensation, and multi-axis control. Delem controller, Yaskawa motors, Bosch-Rexroth hydraulics.
Key Features & Benefits
Servo-Driven Pump System
Reduces heat, wear, and energy consumption, extends pump lifetime.
5 μm Linear Scale (GIVI Italy)
Real-time ram displacement monitoring with 5 μm accuracy.
DSP Laser Angle Sensing
Built-in laser angle measurement with automatic crowning compensation.
Multi-Axis Control
X-axis back gauge and R-axis offset for flexible bending sequences.
Laser Safety Guards
Optical protection for operator safety during operation.
Premium Global Components
Delem (NL), Schneider (FR), Siemens/Yaskawa motors, Bosch-Rexroth hydraulics.
Technical Specifications
Full specifications for the CNC Press Brake. Contact our team for custom configurations or application-specific requirements.
Download PDF| Table Length | 1,300–10,000 mm |
| Nominal Pressure | 500–8,000 kN |
| Distance Between Columns | 1,120–7,800 mm |
| Throat Depth | 250–600 mm |
| Stroke | 150–320 mm |
| Open Height | 460–800 mm |
| Main Motor Power | (5.5×1)–(30×2) kW |
| Precision | 5 μm |
| Controller | Delem (Netherlands) |
| Electric Components | Schneider (France) |
Get a Quote for the CNC Press Brake
Contact our sales team for the best price and unit availability. We respond within hours.
